Single row full complement cylindrical roller bearing
Single row full complement cylindrical roller bearing

NCF 3008 CV

Single row full complement cylindrical roller bearing

Item no.
NCF 3008 CV
Details
40x68x21 mm 0.315 Kg
DescriptionDownload data sheet

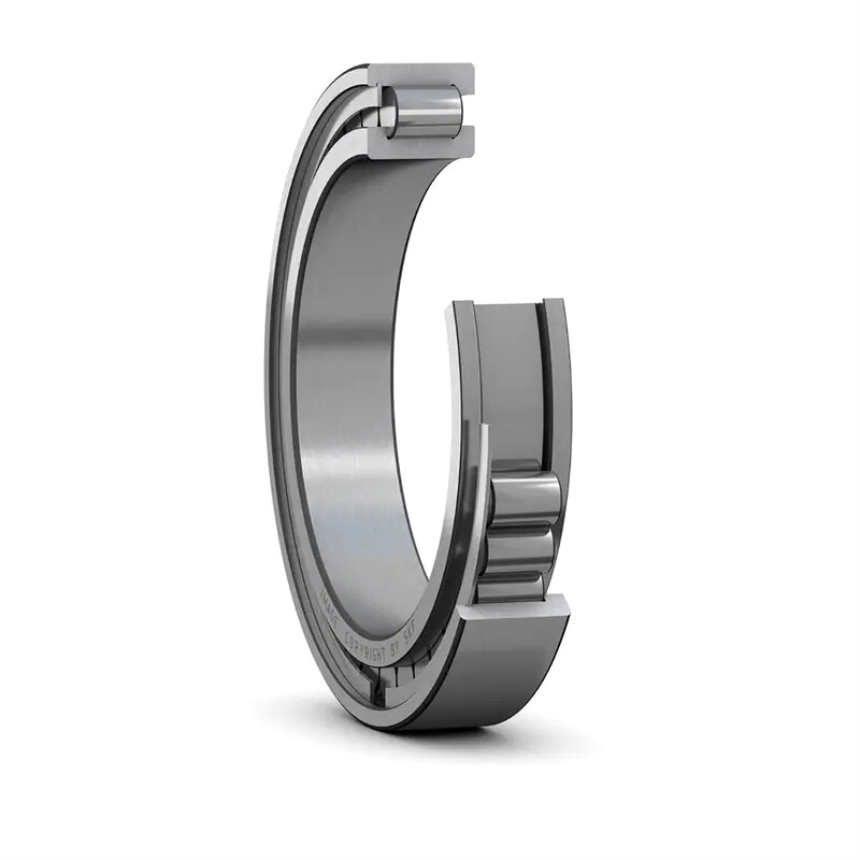

NCF 3008 CV - Cylindrical roller bearingsImage may differ from product. See the technical specification for details.

NCF 3008 CV

Single row full complement cylindrical roller bearing, NCF design
Single row full complement cylindrical roller bearings are designed to accommodate very high radial loads in combination with moderate speeds. The bearings incorporate a maximum number of rollers as they are not equipped with a cage. Having two integral flanges on the inner ring and one flange on the outer ring, NCF design bearings can accommodate axial displacement in one direction. A retaining ring on the outer ring holds the bearing together. The retaining ring should not be loaded axially during operation.
  • Very high radial load carrying capacity
  • High radial stiffness
  • Long service life
  • Locate the shaft axially in one direction
