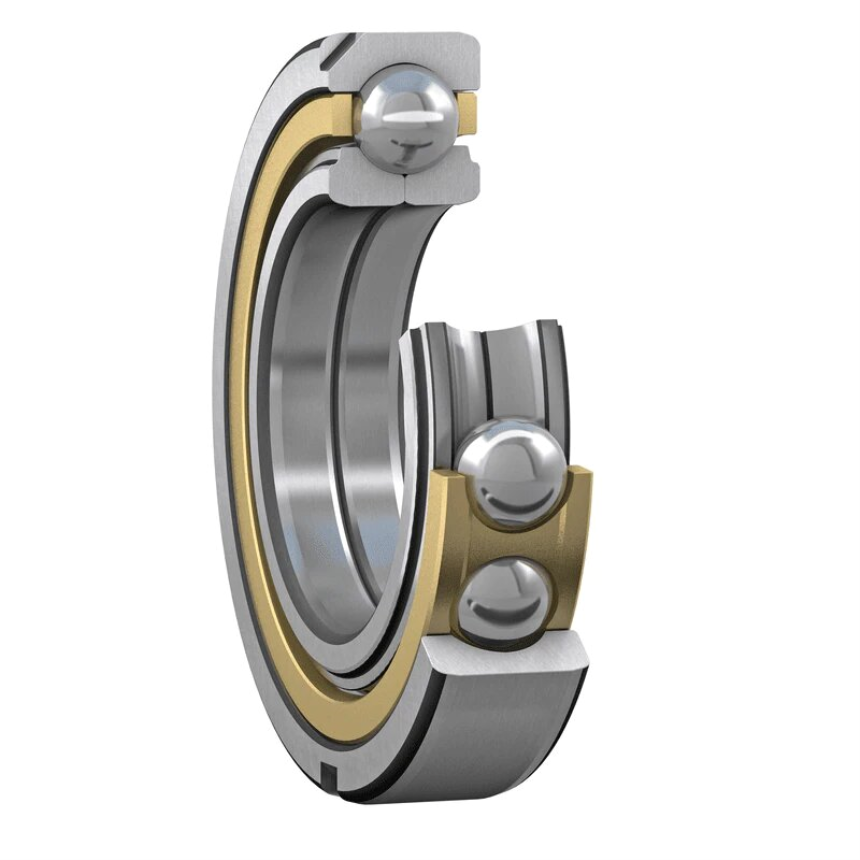

QJ215-TVP - FAG Four-point contact ball bearings
QJ215-TVP - FAG Four-point contact ball bearings

11210215

QJ215-TVP - FAG Four-point contact ball bearings

Item no.
11210215
Details
Shaft d: 75mm Outside D: 130mm Width B: 25mm
Schaeffler rolling bearings and plain bearings: Four-point contact ball bearings


Four-point contact bearings are single-row angular contact ball bearings and therefore require significantly less space in an axial direction than double-row designs.

The bearings comprise solid outer rings, split inner rings and ball and cage assemblies with brass or polyamide cages. The two-piece inner rings enable a large complement of balls to be accommodated. The inner ring halves are matched to the particular bearing and must not be interchanged with those of other bearings of the same size. The outer ring with the ball and cage assembly can be mounted separately from the two inner ring halves.
